Sauermann : Si-PRO-V-300 Hotwire probes for Class 320 Transmitter

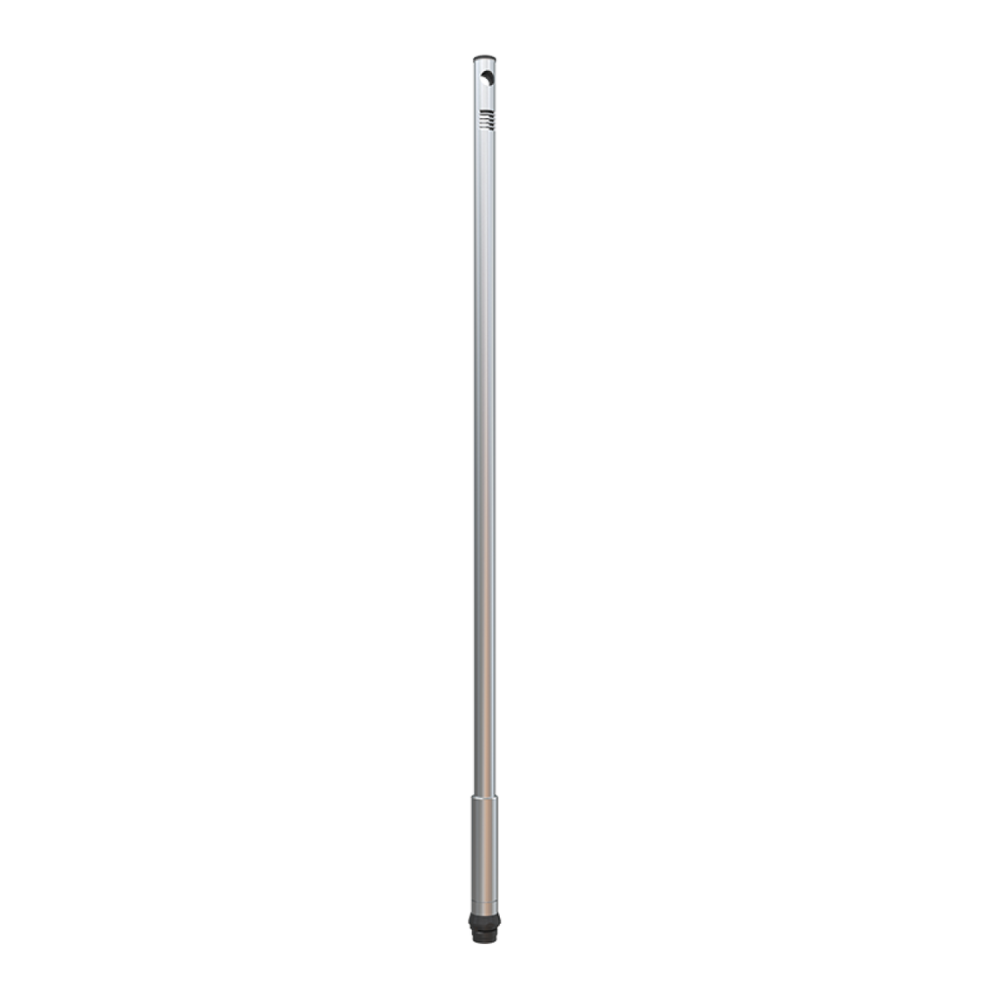

Air velocity hotwire probe for Class 320 Transmitter
Interchangeable hotwire probe for air velocity and temperature measurements. Stainless steel body length 267 mm, Ø 8 mm. Autolock connector. Supplied with adjustment certificate.
- High accuracy and long-term stability, reliable measurements. Thanks to its design, it minimizes the impact of the angle of the airflow on the measurements.
- Main applications: laminar flow monitoring in clean rooms, isolators, glove boxes, fume hoods, isolation cabinets, pharma/cosmetic and semiconductors manufacturing facilities.
RM1,900.00
Air velocity hotwire probe for Class 320 Transmitter
Interchangeable hotwire probe for air velocity and temperature measurements. Stainless steel body length 267 mm, Ø 8 mm. Autolock connector. Supplied with adjustment certificate.
- High accuracy and long-term stability, reliable measurements. Thanks to its design, it minimizes the impact of the angle of the airflow on the measurements.
- Main applications: laminar flow monitoring in clean rooms, isolators, glove boxes, fume hoods, isolation cabinets, pharma/cosmetic and semiconductors manufacturing facilities.
Available on backorder
Technical features
| Parameter | Measuring ranges | Accuracy* | Resolution |
| Air velocity | 0 to 30 m/s (0 to 98.4 fps) | 0 to 3.0 m/s: ±3% of measured value ±0.03 m/s (0 to 9.84 fps: ±0.98 fps ±3% of measured value) 3.1 to 30.0 m/s: ±3% of measured value ±0.1 m/s (10.2 to 98.4 fps: ±0.33 fps ±3% of measured value) |
0 to 3.0 m/s: 0.01 m/s (0 to 9.84 fps: 0.1 fps) 3.1 to 30.0 m/s: 0.1 m/s (10.2 to 98.4 fps: 1 fps) |
| Temperature | 0 to 50°C (32 to 122°F) | ±0.3% of reading ± 0.25°C (±0.45°F ±0.3% of measured value) |
0.1°C (0.1°F) |
| Airflow** | 0 to 999,999 m³/h (0 to 588,577 cfm) |
±3% of reading or ±0.03 x sheath section (cm2) |
0.1 m3/h, 0.1 l/s, 0.1 m3/s, 1 dam3/h, 0.1 cfm |
| Air change rate** | 0 to 1000 ACH | – | 0.1 ACH, 1 ACH |
