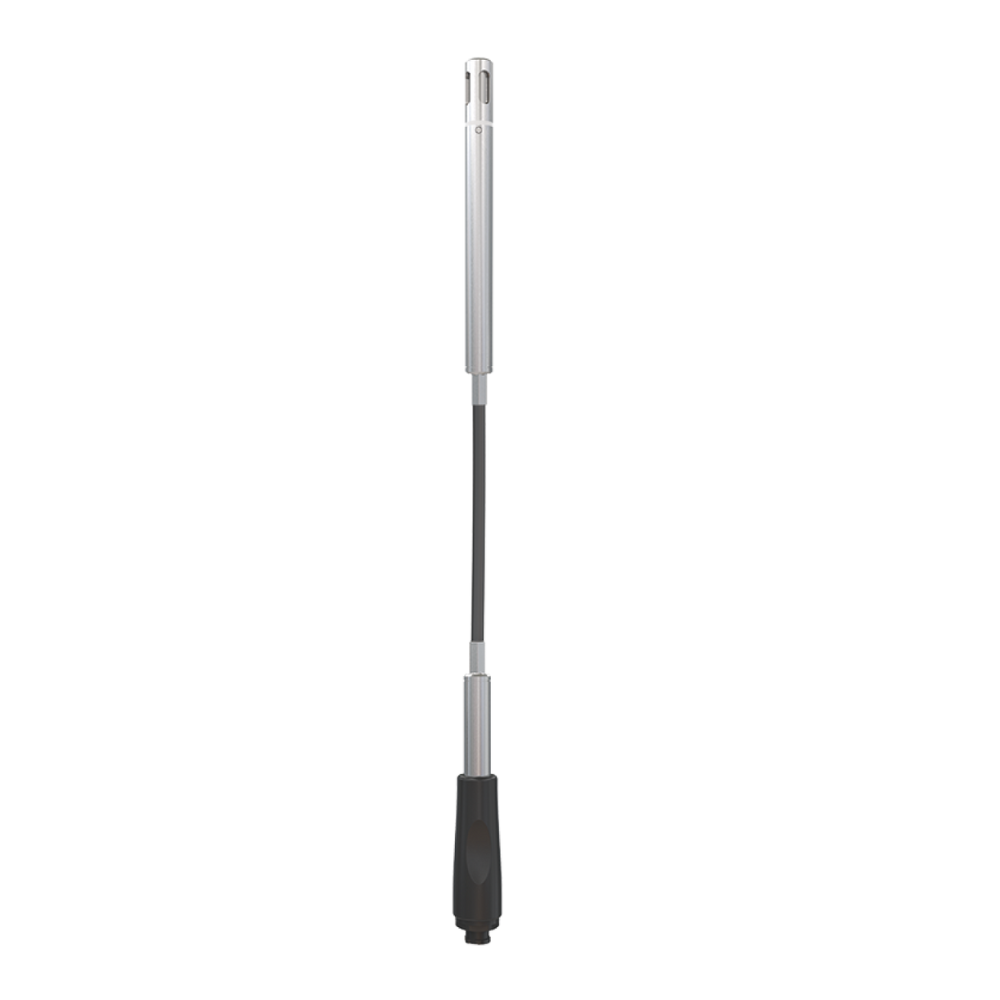

Sauermann : Si-PRO-U-I-150 Stainless steel hygrometry/temperature probes for Class 320 Transmitter
Interchangeable hygrometry probe for Class 320 Transmitter
Stainless steel body with stainless steel filter. Length 150 mm or 300 mm, Ø 13 mm. Autolocking connector. Probe cable for class 320 transmitters is needed. Supplied with adjustment certificate.
- High accuracy and long-term stability and reliable measurements.
- Main applications: regulation of humidity or psychrometric values in VAC systems or in air handling units, measurement of
humidity and temperature for IAQ monitoring.
RM2,150.00
Interchangeable hygrometry probe for Class 320 Transmitter
Stainless steel body with stainless steel filter. Length 150 mm or 300 mm, Ø 13 mm. Autolocking connector. Probe cable for class 320 transmitters is needed. Supplied with adjustment certificate.
- High accuracy and long-term stability and reliable measurements.
- Main applications: regulation of humidity or psychrometric values in VAC systems or in air handling units, measurement of
humidity and temperature for IAQ monitoring.
Technical features
| Parameter | Measuring ranges | Accuracy* | Resolution |
| Pt 100 temperature (°C, °F) | -20 to 80 °C (-4 to 176 °F) | ±0.25 °C ±0.2% of measured value (±0.45 °F ±0.2% measured value) |
0.1 °C, 0.1 °F |
| Relative humidity (%RH) | 0 to 100%RH | ±2.0 %RH (from 40 to 80 %RH) Temperature dependence: ±0.04 x (T-20) %RH (if T<15°C or T>25°C) |
0.1 %RH |
| Wet temperature** (°Ctw, °Ftw) | -50 to 100 °Ctw (-58 to 212 °Ftw) | – | 0.1 °Ctw, 0.1 °Ftw |
| Dewpoint** (°Ctd, °Ftd) | -50 to 100 °Ctd (-58 to 212 °Ftd) | – | 0.1 °Ctd, 0.1 °Ftd |
| Frost point** (°Ctf, °Ftf) | -50 to 100°Ctf (-58 to 212 °Ftf) | – | 0.1°Ctf, 0.1°Ftf |
| Absolute humidity** (g/m3) | 0 to 1000 g/m3 | – | 0.1 g/m3 |
| Enthalpy** (kJ/kg) | 0 to 15,000 kJ/kg | – | 0 to 9999.9: 0.1 kJ/kg 10,000 to 15,000: 1 kJ/kg |
| Mixing ratio** (g/kg) | 0 to 1000 g/kg | – | 0.1 g/kg |
