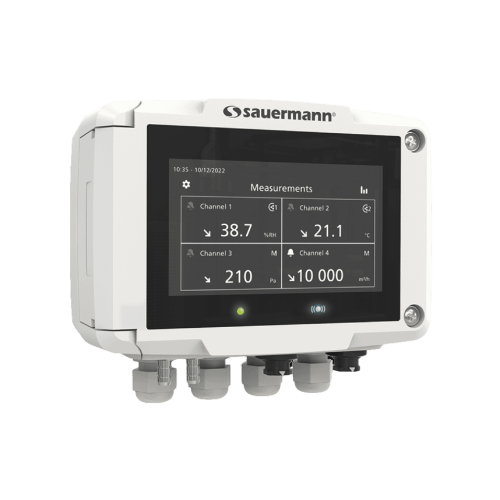

Sauermann : Si-C320 Multifunction Transmitter
Multifunction transmitter
Multifunction for VAC and IAQ applications
4 x analogue outputs
1 x RS-485 interface for Modbus RTU protocol
2 x inputs for external probes

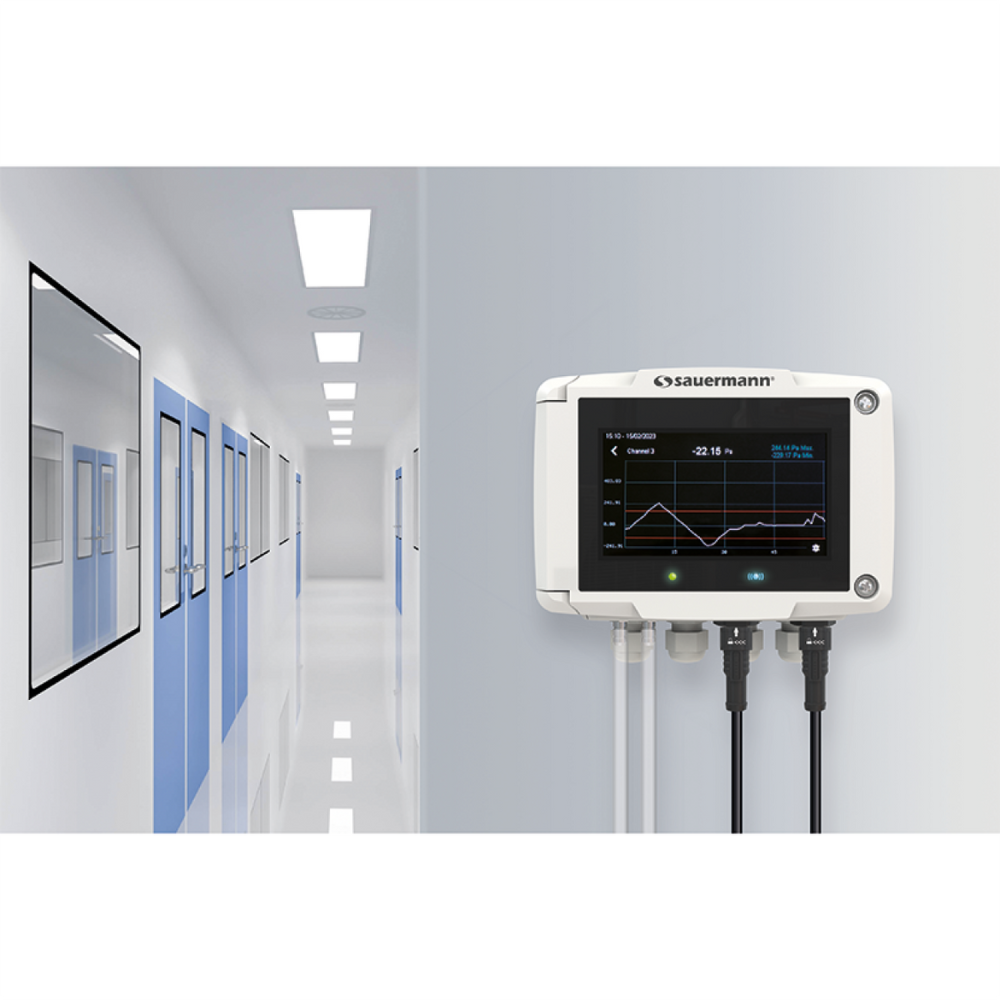

For clean rooms, regulated environments and industrial VAC applications where an efficient regulation/monitoring
of the air parameters is needed, our Si-C320 transmitters provide reliable measurements and allow achieving compliance
with the strictest regulations.
Several models are available, it is possible to create your multifunction transmitter according to your needs on the last
page of this data sheet. Do not hesitate to contact us for more information.
Multifunction transmitter
Multifunction for VAC and IAQ applications
4 x analogue outputs
1 x RS-485 interface for Modbus RTU protocol
2 x inputs for external probes
For clean rooms, regulated environments and industrial VAC applications where an efficient regulation/monitoring
of the air parameters is needed, our Si-C320 transmitters provide reliable measurements and allow achieving compliance
with the strictest regulations.
Several models are available, it is possible to create your multifunction transmitter according to your needs on the last
page of this data sheet. Do not hesitate to contact us for more information.
POSSIBLE OPTIONAL MEASUREMENTS
The following probes and modules are available as an option for Si-C320 transmitters. For further details please see the probes technical data sheet for class 320 transmitters.
| Probes / modules | Measuring ranges | Calculated parameters |
| Differential pressure module (with terminal block for K thermocouple probe) | Available ranges from -50/50 Pa to -10 000/10 000 Pa (-0.2/0.2 inH2O to -40 to 40 inH2O) (according to the module) -200 to 1300°C (-328 to 2372 °F) (depending on the connected probe) |
Air velocity: up to 100 m/s (0 to 328 fps) Air flow: 0 to 999,999 m³/h (0 to 588,577 cfm) Air change rate: 0 to 1000 ACH |
| Relative humidity / temperature probe | 0 to 100 %RH and -40 to 150 °C (-40 to 302 °F) (according to the probe) |
Dew point: -50 to 100 °Ctd (-58 to 212 °Ftd) Wet-bulb temperature: -50 to 100 °Ctw (-58 to 212 °Ftw) Frost point: -50 to 100 °Ctf (-58 to 212 °Ftf) Enthalpy: 0 to 15,000 kJ/kg Absolute humidity: 0 to 1000 g/m³ Mixing Ratio: 0 to 1000 g/kg |
| Temperature probe | -80 to 150 °C (-112 to 302 °F) | N/A |
| Air velocity / temperature probe | 0 to 30 m/s (0 to 98.4 fps) and 0 to 50 °C (32 to 122 °F) |
Air flow: 0 to 999,999 m³/h (0 to 588,577 cfm) Air change rate: 0 to 1000 ACH |
| CO probe | 0 to 500 ppm N | N/A |
| CO2 probe | 0 to 10,000 ppm | N/A |
| VOC probe | TVOC: 0 to 1000 ppb CO2eq: 400 to 2000 ppm |
N/A |
GENERAL FEATURES
| Power supply | 24 VAC / VDC ±10% Warning: risk of electric shock |
| Outputs | 4 x 4-20 mA, 0-20 mA, 0-10 V and 0-5 V analogue outputs Common mode voltage <30 VAC Maximum load: 500 Ω (0/4-20 mA) Minimum load: 1 KΩ (0-5/10 V) |
| Galvanic isolation | Inputs (power supply) and outputs Device fully protected by DOUBLE ISOLATION or REINFORCED ISOLATION |
| Consumption with probe and without option |
15 VA |
| Electrical connections | Screw terminal block for cables from 0.05 to 2.5 mm2 or from 30 to 14 AWG Carried out according to the code of good practices |
| RS-485 communication | Modbus RTU protocol, configurable communication speed from 2400 to 115200 |
| Wireless communication (option) |
Range frequency from 2402 MHz to 2480 MHz with a transmission power of 0 dBm. Range up to 15 m (50 ft), depending on smartphone radio strength. Minimum required versions: Android 5.0, iOS 12.4, BLE 4.0 |
| Audible alarm | Buzzer (60 dB at 10 cm) |
| Environment and type of fluid | Air and neutral gases |
| Conditions of use (°C/%RH/m) |
From -10 to 50 °C (14 to 122 °F) In non-condensing environment From 0 to 2000 m (0 to 6561 feet) |
| Storage temperature | From -10 to 70 °C (14 to 158 °F) |
| Security | Protection class 2 – Pollution degree 2 – Overvoltage category 2 |
| European directives | 2014/30/EU EMC – 2014/35/EU Low Voltage – 2014/53/EU (RED) – 2015/863 EU (RoHS 3) – 2012/19/EU WEEE |
