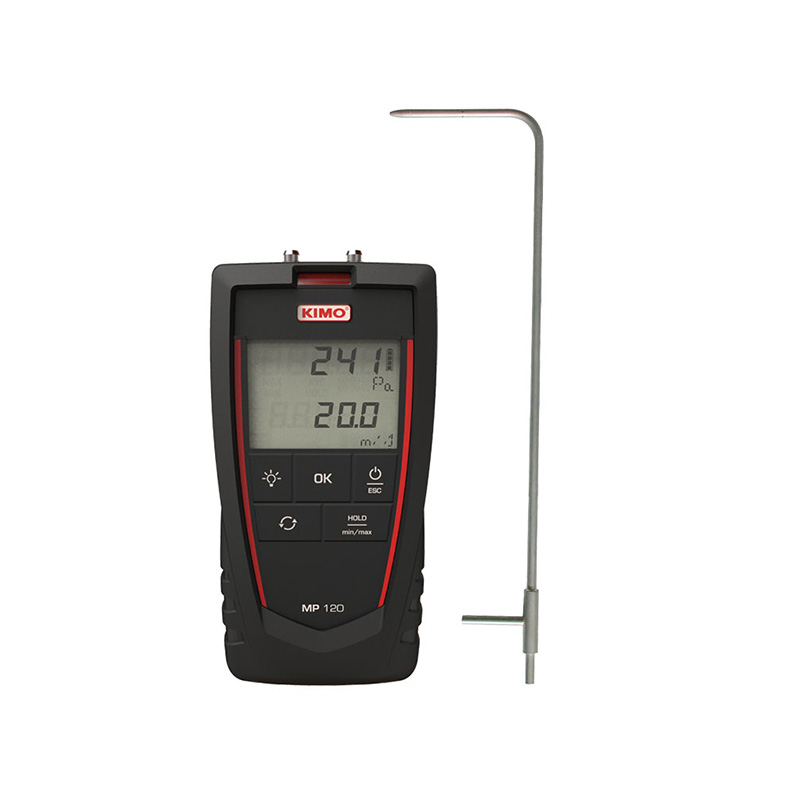

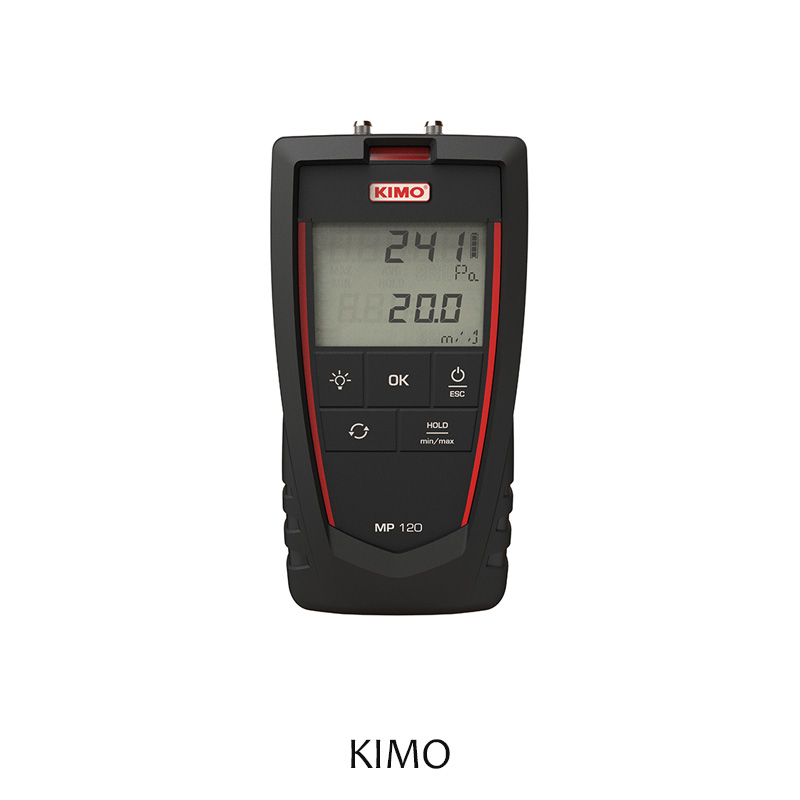

KIMO : MP120 Portable Anemo-Manometer with Integrated Pressure Sensor
The MP 120 is a micromanometer with a modifiable climatic parameters and calculation for air velocity with a Pitot tube. It has a compact design, with an IP54 protected housing constructed out of ABS. It has a maximum pressure measuring capacity that ranges from -1000 to +1000 Pa, and a maximum air velocity measuring capacity of up to 40 m/s.
RM3,100.00
The MP 120 is a micromanometer with a modifiable climatic parameters and calculation for air velocity with a Pitot tube. It has a compact design, with an IP54 protected housing constructed out of ABS. It has a maximum pressure measuring capacity that ranges from -1000 to +1000 Pa, and a maximum air velocity measuring capacity of up to 40 m/s.
Piezoresistive sensor, hold-min-max functions, adjustable automatic shut-off, adjustable backlight, manual auto-zero. IP54 ABS housing.
Adjustable climatic parameters, calculation for air velocity with Pitot tube.
Measuring range:
- Pressure : -1000 to +1000 Pa
- Air velocity : 0 to 40 m/s
Supplied with conformity certificate, silicone tube, and transport case.
Be the first to review “KIMO : MP120 Portable Anemo-Manometer with Integrated Pressure Sensor”
| TECHNICAL FEATURES | |||
| Measuring element | Piezoresistive sensor | ||
| Overpressure allowed | 250 mbar | ||
| Connector | Ø 6.2 mm threaded connectors made of nickelled brass. | ||
| Display | 4 lines, LCD technology. Sizes 50 x 36 mm. | ||
| 2 lines of 5 digits with 7 segments (value) | |||
| 2 lines of 5 digits with 16 segments (unit) | |||
| Housing | ABS, protection IP54 | ||
| Keypad | 5 keys | ||
| Conformity | Directives CEM 2004/108/CE and NF EN 61010-1 | ||
| Power supply | 4 batteries AAA LR03 1.5 V | ||
| Battery life | 180 hours | ||
| Ambiance | Neutral gas | ||
| Operating temperature | From 0 to +50 °C | ||
| Storage temperature | From -20 to +80 °C | ||
| Auto shut-off | Adjustable from 0 to 120 min | ||
| Weight | 220 g | ||
| FUNCTIONS | Pressure measurement | ||
| Air velocity measurement | |||
| Coefficient of the adjustable differential pressure element | |||
| Temperature and atmospheric pressurecompensation | |||
| Selection of units | |||
| Autozero Manual | |||
| Hold function | |||
| Display of minimum and maximum values | |||
| Configurable auto shut-off | |||
| Backlight | |||
| PRESSURE SPECIFICATIONS | |||
| Measuring units | Measuring range | Accuracy1 | Resolution |
| Pa, mmH2O inWg, daPa, m/s, fpm | From -1000 to +1000 Pa | ±0.5% of reading ±2 Pa | 1 Pa |
| VELOCITY SPECIFICATIONS | |||
| Measuring units | Measuring range | Accuracy1 | Resolution |
| m/s, fpm, km/h | De 0 à 40 m/s | From 2 to 5 m/s : ±0.7 m/s From 5 to 40 m/s : ±0.5% of reading ±0,3 m/s |
0.1 m/s |
