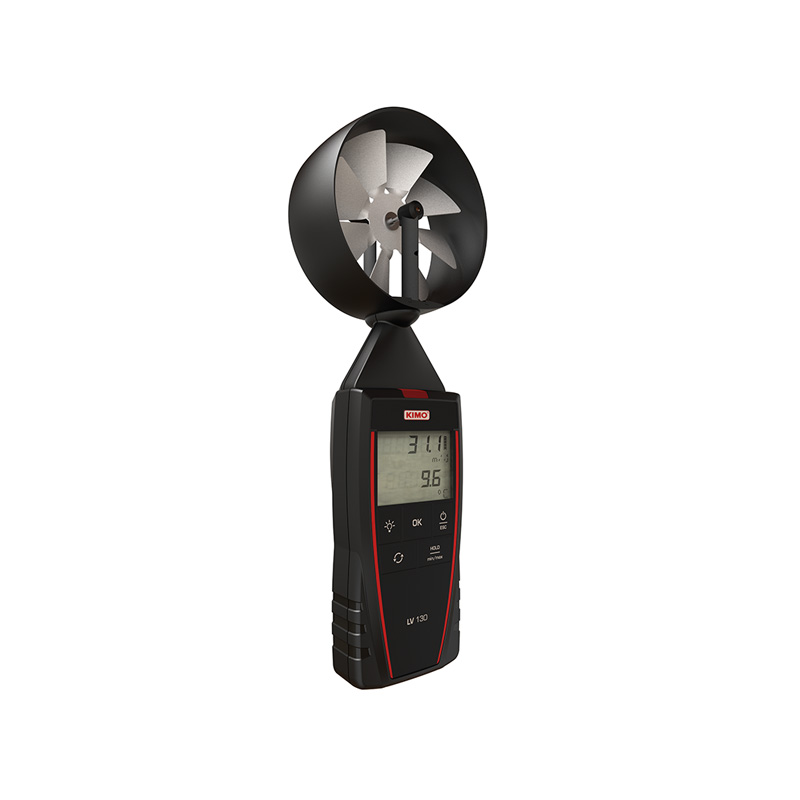

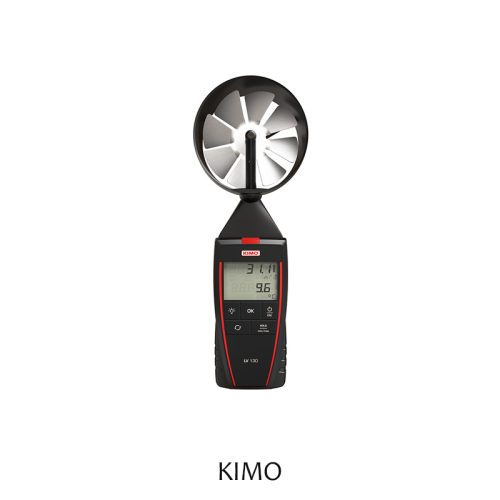

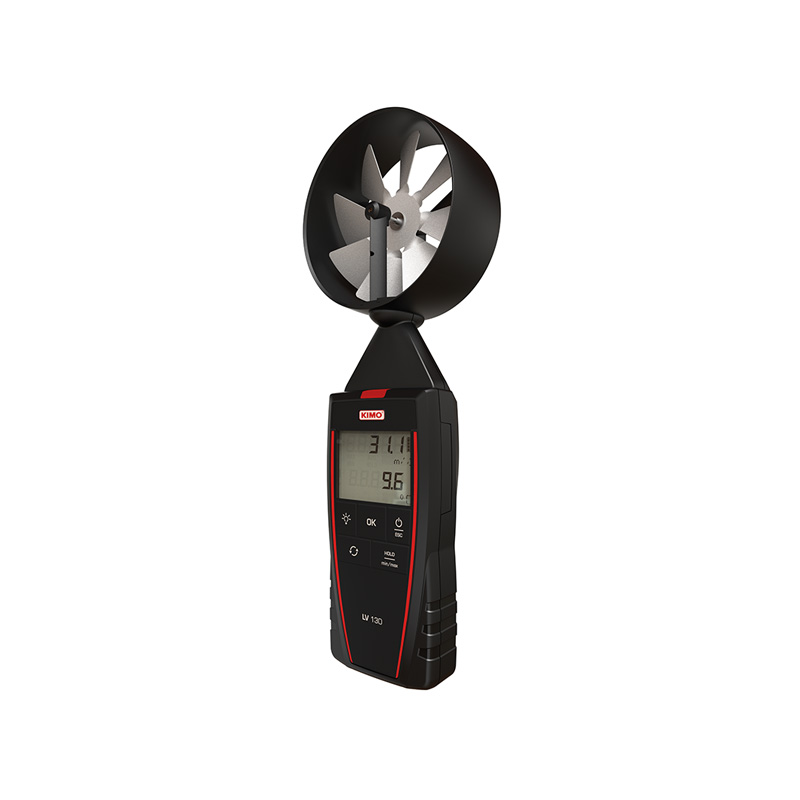

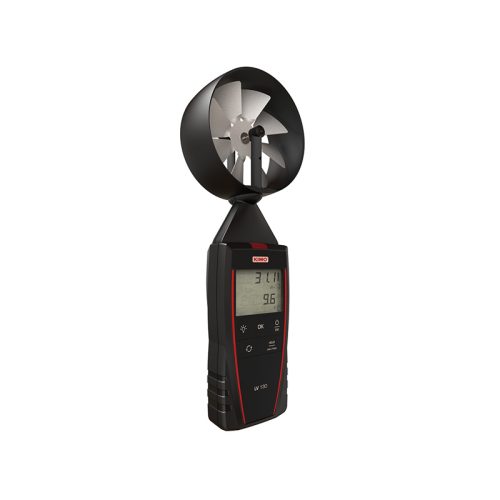

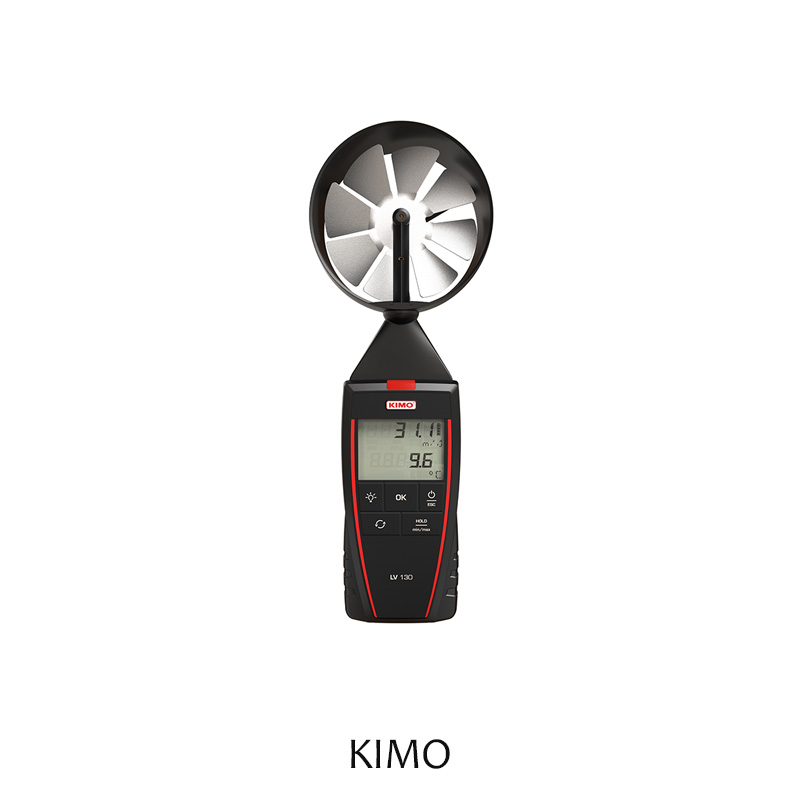

LV130 Portable Thermo-Anemometer with Remote Ø100mm Vane Probe

Stock No. KI-P-L-037 Mfr Part No.

Integrated probe, hold-min-max functions, adjustable automatic shut-off, adjustable backlight. IP54 ABS housing.

Airflow calculation, airflow calculation with cone, automatic average, detection of flow direction.

Measuring range

  • Air velocity: 0,3 to 35 m/s
  • Airflow: 0 to 99 999 m3/h
  • Temperature : 0 to +50°C

Supplied with adjustment or calibration certificate and transport case.


RM1,844.00 RM1,750.00

0 out of 5 based on 0 customer ratings

KIMO LV 130 Vane Probe thermo-anemometer is scientifically designed to measure air velocity, airflow and ambient temperature. Its air velocity measures from 0.25 to 35 m/s, airflow from 0 to 99.999 m3/h and temperature of up to +50°C. This compact device also comes with a transport case and conformity certificate.

Download PDF

Click here for product demonstration

Availability : In Stock

Qty:
Compare

Integrated probe, hold-min-max functions, adjustable automatic shut-off, adjustable backlight. IP54 ABS housing.

Airflow calculation, airflow calculation with cone, automatic average, detection of flow direction.

Measuring range

  • Air velocity: 0,3 to 35 m/s
  • Airflow: 0 to 99 999 m3/h
  • Temperature : 0 to +50°C

Supplied with adjustment or calibration certificate and transport case.

TECHNICAL FEATURES
Measuring elements  Air velocity : Hall effetsensor
Ambienttemperature : NTC
Display 4 lines, LCD technology.Sizes 50 x 36 mm
2 lines of 5 digits with 7 segments (value)
2 lines of 5 digits with 16 segments (unit)
Vane probe diameter  Ø100 mm
Housing  ABS, protection IP54
Keypad  5 keys
Conformity  Directives EMC 2004/108/CE and EN 61010-1
Power supply  4 batteries AAA LR03 1.5 V
Battery life  180 hours
Ambience  Neutral gas
Operating temperature (instrument)  From 0 to +50 °C
Operating temperature (probe)  From 0 to +50 °C
Storage temperature  From -20 to +80 °C
Auto shut-off Adjustable  From 0 to 120 min
Weight  390 g
FUNCTIONS Airflow calculation
Airflow calculation with cone
Automatic average
Selection of units (air velocity, airflow and temperature)
Hold function
Display of minimum and maximum values
Adjustable auto shut-off
Backlight
Detection of flow direction
SPECIFICATIONS
Measuring units Measuring range  Accuracy1  Resolution
Velocity
m/s, fpm, km/h  From 0.3 to 35 m/s De 0.3 à 3 m/s : ±3% of reading ±0.1 m/s 0.01 m/s
    De 3.1 à 35 m/s : ±1% of reading ±0.3 m/s 0.1 m/s
Airflow
m³/h, cfm, l/s, m³/s From 0 to 99 999 m³/h ±3% of reading ±0.03 * area (cm²) 1 m³/h
Temperature
°C, °F  From 0 to +50 °C  ±0.4 % of reading ±0.3 °C  0.1 °C
