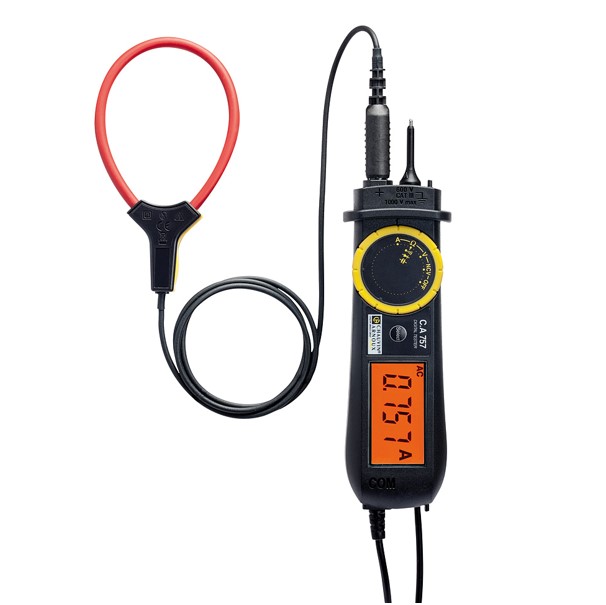

The compact, lightweight C.A 757 tester is a test and measurement instrument offering all the essential functions required by electricians on a day-to-day basis.
RM1,999.00
The compact, lightweight C.A 757 tester is a test and measurement instrument offering all the essential functions required by electricians on a day-to-day basis.
Availability : In Stock
With its 600 V CAT III double insulation, the C.A 757 complies with the new IEC 61010-2-033 standard for multimeters.
Simple to use, the C.A 757 automatically recognizes Ac and DC voltages, as well as continuity, resistors, diodes and capacitors. It also detects live conductors without contact.
Lastly, the C.A 757 is delivered with a MiniFlex flexible current sensor allowing current measurements up to 300 AAC even in places where access is difficult.
Main specifications:
• DC voltage: 3 mVDC to 1000 VDC
• AC voltage: 100 mVAC to 1000 VAC
• Currents: 500 mA to 300 A (with MiniFlex sensor supplied)
• Resistance: 0.3 Ω to 30 MΩ
• Audible continuity for R ≤ 30 Ω
• Capacitance: 400 pF to 30 mF
• Diode test
• No-contact voltage detection
• 600 V CAT III
Connection cable between the transmitter and:
Connection cable between the transmitter and:
Interchangeable VOC probe. Plastic body, Ø 29.5 mm, length: 175 mm. Autolock connector. Probe cable for connection to
class 320 transmitters is needed. Supplied with mounting flange and adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreInterchangeable CO probe. Plastic body, Ø 29.5 mm, length: 175 mm. Autolock connector. Probe cable for connection to class 320 transmitters is needed. Supplied with mounting flange and adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreInterchangeable CO2 probe. Plastic body, Ø 29.5 mm, length: 175 mm. Autolock connector. Probe cable connection to class 320 transmitters
is needed.. Supplied with mounting flange and adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreInterchangeable hotwire probe for air velocity and temperature measurements. Stainless steel body length 267 mm, Ø 8 mm. Autolock connector. Supplied with adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreInterchangeable Pt100 temperature probe. Stainless steel sheath, dimensions: length 153 mm, Ø 6 mm. Autolock connector. Supplied with adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreRM1,680.00
Interchangeable hygrometry/temperature probe. Plastic body with stainless steel filter. Length 150 mm, Ø 13 mm. Autolocking connector. Probe cable for connection to class 320 transmitters is needed. Supplied with adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreRM2,150.00
Stainless steel body with stainless steel filter. Length 150 mm or 300 mm, Ø 13 mm. Autolocking connector. Probe cable for class 320 transmitters is needed. Supplied with adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn More0 to 100 %RH, -20 to 80 °C (-4 to 176 °F). Stainless steel body and sintered filter. Autolock connector. Si-ACC-RVP cable is needed to connect to Si-CPE320 transmitters. Supplied with adjustment certificate.
Advantage:
• Flush mount probe
• High accuracy and long-term stability
• VHP resistant
• Easy to install – deatachable probe cable
• Enables the calculation of psychrometric values
Download Specsheet : Si-PRO-U-W
Learn More
