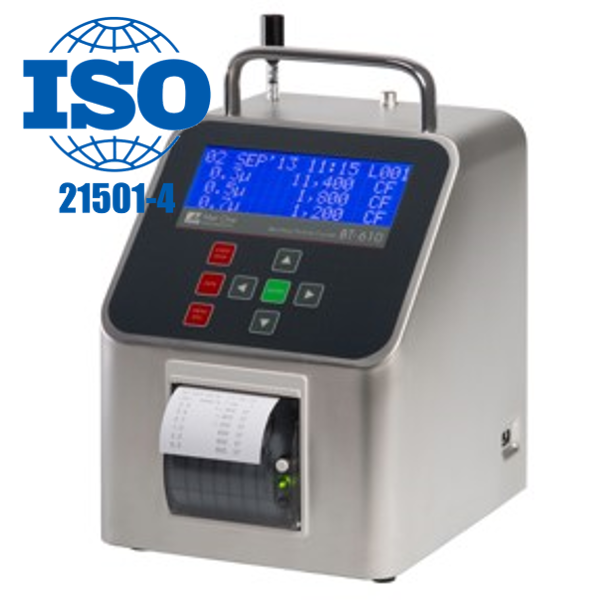

The BT-610 is a compact battery-operated particle counter with six selectable size channels and built-in printer all housed in a portable stainless-steel case. Flow rate is 0.1 cfm (2.83 lpm) and is maintained with volumetric flow control for improved accuracy.
Supplied accessories:
Operation Manual, USB Cable, Comet Software, Particle View Software, Battery Charger, Iso-kinetic Sample Probe, Zero Particulate Filter, Printer Paper – 2 Rolls and ISO21501-4 Calibration Certificate
The BT-610 is a compact battery-operated particle counter with six selectable size channels and built-in printer all housed in a portable stainless-steel case. Flow rate is 0.1 cfm (2.83 lpm) and is maintained with volumetric flow control for improved accuracy.
Supplied accessories:
Operation Manual, USB Cable, Comet Software, Particle View Software, Battery Charger, Iso-kinetic Sample Probe, Zero Particulate Filter, Printer Paper – 2 Rolls and ISO21501-4 Calibration Certificate
INTERFACE | |
Display | 20 character x 4 line LCD |
Keyboard | 8 key membrane type |
PERFORMANCE PM | |
Ranges | 0.3µm – 10µm, 6 channels |
Calibrated Sizes | 0.3µm,0.5µm,1.0µm,2.0µm5.0µmand10µm |
User Size Settings | 0.1µm steps from 0.3µm -2.0µm 0.5µm steps from 2.0µm – 10µm |
Concentration Range | 0 – 3,000,000 particles per cubic foot (105,900 particle/L) |
Accuracy | ± 10% to calibration aerosol |
Sensitivity | 0.3 µm |
Flow Rate | 0.1 cfm (2.83 lpm) |
Sample Time Adjustable | 1 to 999 seconds |
Hold Time Adjustable | 0 to 999 seconds |
ELECTRICAL | |
Light Source | Laser Diode, 90mW, 780 nm |
Power | 14.8V Li-Ion self-contained battery pack – Provides for 8 hours continuous use. Full recharge approximately 3 hours. |
AC Adapter/Charger | Li-Ion Charger, 100 – 240 VAC to 16.8 VDC @ 1.8A USB, |
Communications | RS-232 or RS-485 |
Standards | Meets ISO 21501-4. CE marked. ISO 9001 manufacturing facility. |
PHYSICAL | |
Weight | 8 lb – 1.6 oz (3.67 kg) |
Size | Height = 8.75” (22.2 cm) With Handle = 10.25“(26.0 cm) Width = 6.75” (17.1 cm) Depth = 8.5” (21.5 cm) |
ENVIRONMENTAL | |
Operation Temperature | 0° to +40°C |
Storage Temperature | -20° to +60°C |
Particle View RT software includes all of the functions required for recording real time data, viewing data (both real time and historical), and producing tabular and graphic reports needed for most users of clean rooms and controlled environments. It is designed for use with the Met One Instruments, Inc. line of hand held and bench mounted particulate counting products.
Learn More
Met One 9801 Flow Meter Kit for use with 804, GT-521, GT-526S, AEROCET-531S, 831
Learn More
Met One G3120 Temperature/Humidity Sensor
Learn More
Connection cable between the transmitter and:
Connection cable between the transmitter and:
Interchangeable VOC probe. Plastic body, Ø 29.5 mm, length: 175 mm. Autolock connector. Probe cable for connection to
class 320 transmitters is needed. Supplied with mounting flange and adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreInterchangeable CO probe. Plastic body, Ø 29.5 mm, length: 175 mm. Autolock connector. Probe cable for connection to class 320 transmitters is needed. Supplied with mounting flange and adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreInterchangeable CO2 probe. Plastic body, Ø 29.5 mm, length: 175 mm. Autolock connector. Probe cable connection to class 320 transmitters
is needed.. Supplied with mounting flange and adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreInterchangeable hotwire probe for air velocity and temperature measurements. Stainless steel body length 267 mm, Ø 8 mm. Autolock connector. Supplied with adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreInterchangeable Pt100 temperature probe. Stainless steel sheath, dimensions: length 153 mm, Ø 6 mm. Autolock connector. Supplied with adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreRM1,680.00
Interchangeable hygrometry/temperature probe. Plastic body with stainless steel filter. Length 150 mm, Ø 13 mm. Autolocking connector. Probe cable for connection to class 320 transmitters is needed. Supplied with adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn MoreRM2,150.00
Stainless steel body with stainless steel filter. Length 150 mm or 300 mm, Ø 13 mm. Autolocking connector. Probe cable for class 320 transmitters is needed. Supplied with adjustment certificate.
Download Specsheet : Probe for Class320 Transmitter
Learn More0 to 100 %RH, -20 to 80 °C (-4 to 176 °F). Stainless steel body and sintered filter. Autolock connector. Si-ACC-RVP cable is needed to connect to Si-CPE320 transmitters. Supplied with adjustment certificate.
Advantage:
• Flush mount probe
• High accuracy and long-term stability
• VHP resistant
• Easy to install – deatachable probe cable
• Enables the calculation of psychrometric values
Download Specsheet : Si-PRO-U-W
Learn More
