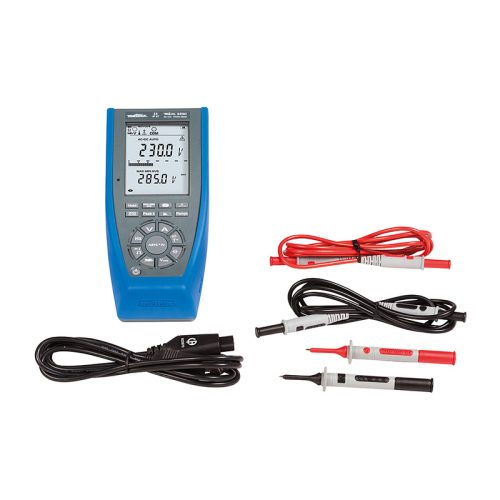

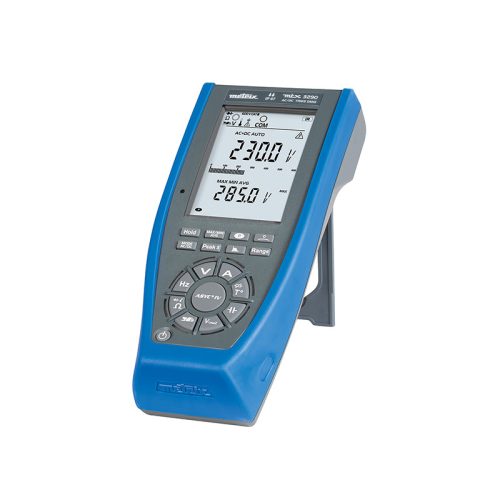

MTX3290 AC/DC TRMS Digital Multimeter 20kHz

Stock No. CA-I-M-024 Mfr Part No.

600v-newibc61010-newip67trms

  • Easy-to-read 70×52 mm LCD screen
  • Contextual reminder of connection on the screen
  • Current autoranging, single terminal up to 10 A
  • Secondary measurements in addition to the main measurement to facilitate analysis
  • Surveillance of the MIN/MAX and AVG data with relative time/date-stamping and of voltage and current peaks
  • IP67 protection against water projection and dust,ideal for outdoor conditions
  • Powered by 4 standard AA batteries or 4 Ni-MH batteries rechargeable with an HX0051B external module (option)
  • Operation for up to 400 hrs on batteries

RM1,566.00

0 out of 5 based on 0 customer ratings

These portable multimeters with digital display allowing direct measurement of the main electrical quantities benefit from an innovative design making them compact, rugged, leakproof and comfortable to grip.

Download PDF

Click here for product demonstration

Availability : In Stock

Qty:
Compare

600v-newibc61010-newip67trms

  • Easy-to-read 70×52 mm LCD screen
  • Contextual reminder of connection on the screen
  • Current autoranging, single terminal up to 10 A
  • Secondary measurements in addition to the main measurement to facilitate analysis
  • Surveillance of the MIN/MAX and AVG data with relative time/date-stamping and of voltage and current peaks
  • IP67 protection against water projection and dust,ideal for outdoor conditions
  • Powered by 4 standard AA batteries or 4 Ni-MH batteries rechargeable with an HX0051B external module (option)
  • Operation for up to 400 hrs on batteries
Multimeters Easy-to-read 70x52 mm LCD screen
Contextual reminder of connection on the screen
Current autoranging, single terminal up to 10 A
Secondary measurements in addition to the main measurement to facilitate analysis
Surveillance of the MIN/MAX and AVG data with relative time/date-stamping and of voltage and current peaks
Facilities and Highlights: Display 4.5 points, 6000 count
DC accuracy: 0.3%
Measurement modes: Standard voltages DC, AC and AC + DC, current DC, AC, AC + DC, frequency, resistance, Aud. Continuity test, diode test, capacitance, temperature PT100 / 1000
LCD display 70x52 mm with excellent readability
Context display the connections on the display
Automatic measuring range selection for current, 1 single socket to 10 A
Auxiliary measurements in addition to the main measure to simplify the analysis
Monitoring: MIN / MAX and AVG data with relative time tracking, voltage and current peaks
IP67, splash and dust resistant, perfectly suited for outdoor use
Power supply via 4 AA standard batteries or 4 rechargeable via external module Ni-MH batteries HX0051B (as an option)
Autonomy up to 400 hours in battery mode
Safety according to IEC 61010-1 1000 V CAT III / 600 V CAT IV
Dimensions (L x W x H): mm 196x90x47,1
Weight: 570 g
